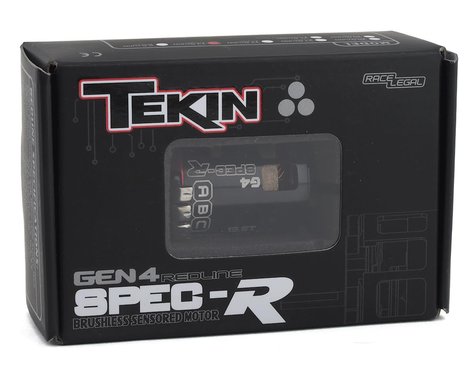

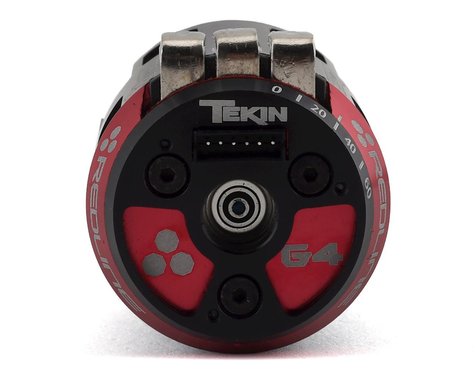

Tekin SpecR Gen4 Sensored Brushless Motor (10.5T)
Information
Tekkin’s SPEC-R brushless motors are engineered for award-winning performance. Utilizing the best materials available we redesigned the SPEC-R to cut weight while reducing resistance, resulting in a purebred Spec racing machine. On Road or Off, the SPEC-R handles all situations, providing smooth power and control across all RPMs when you need it. The SPEC-R is competition performance with the speed you need to win. Pair with an RS PRO Black Edition for the ultimate in SPEC Racing Equipment.
NEW DESIGN
The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 SPEC-R motor is a premium performance power plant for the serious racer.
Specifications
Input Voltage: 1-2S LiPO - 25.5T / 21.5T / 17.5T / 13.5T / 10.5T / 6.5T
Weight: 5.1oz / 145g
Shaft Dimensions: 3.18mm (1/8") x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 50.25mm / 1.978"
Max Operating Temperature: 180°F / 82°C
Bearing Dimensions: Front: 4x13x5mm
Rear: 1/8x3/8x5/32"
Rotor Size: 12.3mm BLACK - 25.5T
12.5mm BLUE - 21.5T / 17.5T / 13.5T / 10.5T
Rebuildable: Yes
OFF ROAD
1:10 2WD Stock Buggy
1:10 2WD Stock Truck
1:10 2WD Stock Short Course
1:10 4WD Stock Buggy
ON ROAD
1:12 2WD Pan Car
1:10 2WD Pan Car
1:10 World GT
1:10 Formula 1
1:10 4WD Stock Touring Car
1:10 Drift
OVAL
1:10 2WD
1:10 SK Car
1:10 Stock Car
1:10 Winged Sprint
1S LiPo Classes
