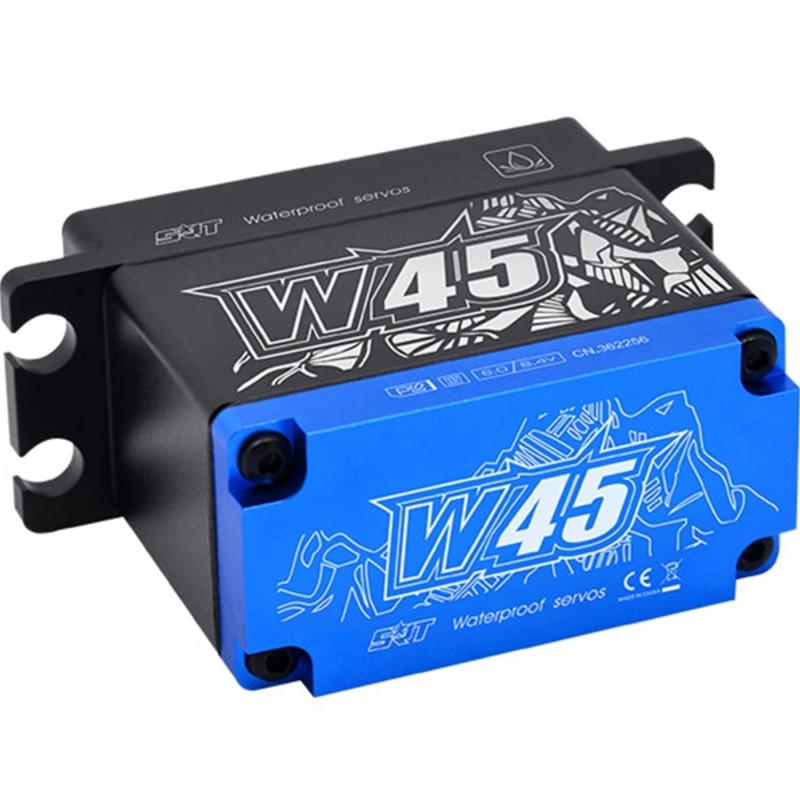

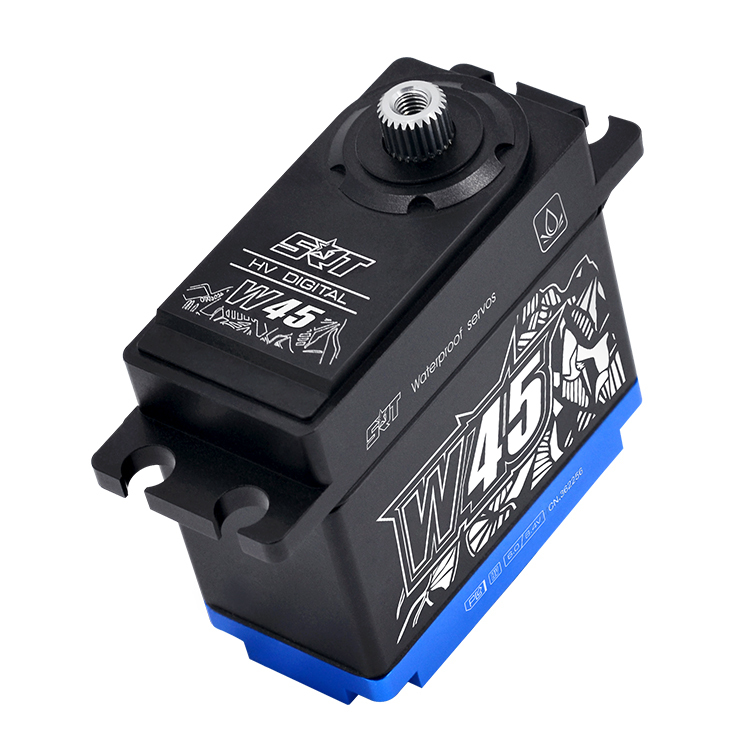

SRT High Torque Waterproof HV Coreless Servo 45KG

SRT High Torque Waterproof HV Coreless Servo 45KG
High Voltage Waterproof Metal Geared
Price:
NZ$ 179.00 including GST


or four payments of $44.75 with
Afterpay Payment Offer Learn More

SRT-W-45
Purchase Qty:


KEY FEATURES

  • Intermediate aluminium case
  • NMB dual main bearings
  • Superior waterproof
  • 25T output shaft

PRODUCT SPECIFICATIONS

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequency: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.20 sec/60 degrees at no load
  • operating speed (7.4v): 0.19 sec/60 degrees at no load
  • operating speed (8.4v): 0.18 sec/60 degrees at no load
  • stall torque (6.0v): 34.0kg.cm (472.2 oz/in)
  • stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
  • stall torque (8.4v): 45.0kg.cm (624.9 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
  • weight: 82.5g (2.91 oz)
  • connector wire length: jr 360 mm
