SRT BH8015 HV BL SERVO 10KG - 0.065 SEC AT 6V - METAL CASE

SRT BH8015 HV BL SERVO 10KG - 0.065 SEC AT 6V - METAL CASE
Price:
NZ$ 165.00 including GST


or four payments of $41.25 with
Afterpay Payment Offer Learn More

SRT-BH8015
Purchase Qty:


KEY FEATURES

  • Standard dimension make it perfect for vehicles that can benefit from a high quality servoUnique Mechanic Design
  • incredible efficiency and low power consumption
  • CNC Machined aluminum case for exceptional cooling
  • HD 4096 Resolution
  • 2 μsec Dead Band
  • Superior Holding Torque



PRODUCT SPECIFICATIONS

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless
  • Gear Type: Metal
  • Gear Material: Titanium & Alu
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.065 sec/60 degrees at no load
  • operating speed (7.4v): 0.055 sec/60 degrees at no load
  • operating speed (8.4v): 0.050 sec/60 degrees at no load
  • stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
  • stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
  • stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
  • potentiometer drive: direct drive

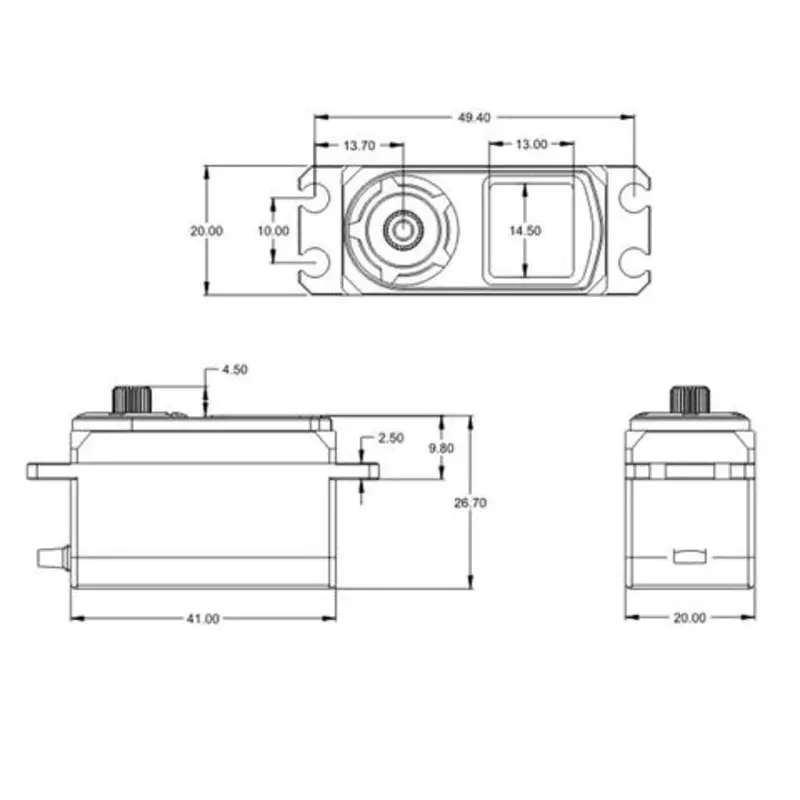

  • dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
  • weight: 52.0g (1.83 oz)
  • connector wire length: jr 180 mm
