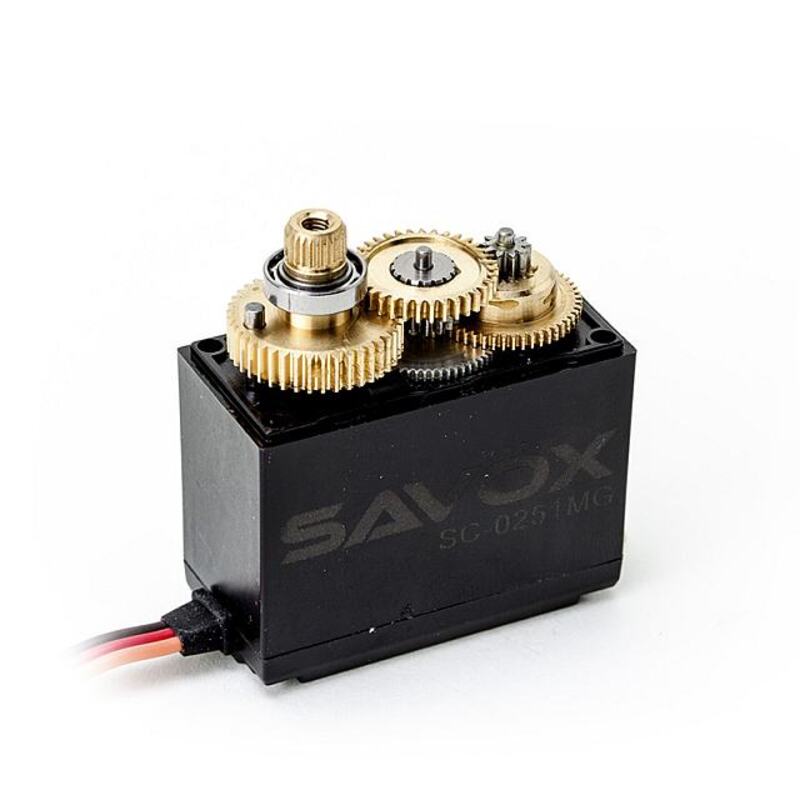

SAVOX SC-0251MG Metal Gear STD Size Digital Servo

Information

SAVOX SC-0251MG Metal Gear STD Size Digital Servo Savox size 16kg/cm, 0.18 sec

Idea for upgrade RC 1/8  -

The Savox SC-0251MG is a high torque, metal-geared, digital servo which is suitable for many applications .

Features:

• Metal gear train ensures durability under harsh situations.
• Slightly taller case design..

• Specifications:
• Torque @ 4.8v - 13.0kg/180.5oz-in
• Torque @ 6v - 16.0kg/222.2oz-in
• Speed @ 4.8v - 0.20 sec/60 deg
• Speed @ 6v - 0.18 sec/60 deg
• Dimensions L x W x H (mm): 40.7 x 19.6 x 42.4
• Weight: 61.0g

Technical specifications:
Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V - 6.0V
Servo Type / Size: Standard
Motor Type: Brushed 3-Pole Motor
Gear Material: Metal gears
Ball Beared: Ball Beared
Servo Case: Composite
Speed 60°/Sec @ 6.0V: 0.18 Sec/60°
Torque kg/cm @ 6.0V: 16.0 Kg/cm
Length (mm): 40.7 mm
Width (mm): 20.0 mm
Height (mm): 42.4 mm
Weight (g): 61 g
Connector type: JR
Spline size: 25T Spline
