HOBBYWING XERUN XR8 PLUS G2S 200A SENSORED BRUSHLESS ESC
Information

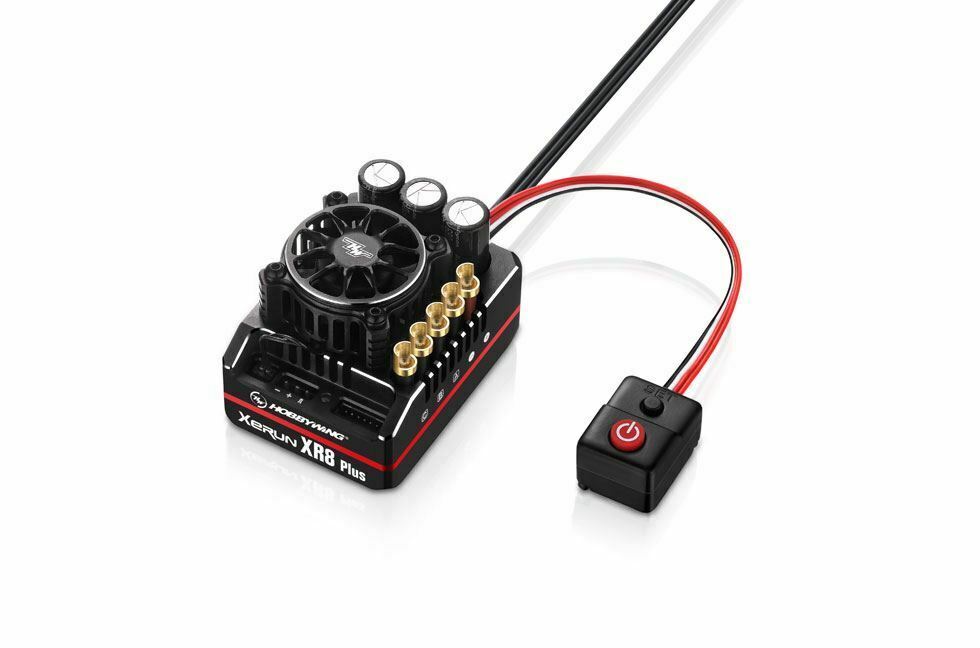

Hobbywing 30113304 Xerun XR8 Plus G2S 1/8 Competition Sensored Brushless ESC
The Hobbywing Xerun XR8 Plus G2S 1/8 Competition Sensored Brushless ESC is the next level in 1/8 competition ESC's. Advancements have been made allowing this ESC to support 48° of boost and turbo timing. When combining this ESC with an optional 4268/4274 G3 motor, the maximum speed can be promoted by 50%. For added protection, this ESC is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform.
NOTE: Use appropriate settings provided by the factory or team drivers. Check operating temperature in order to maximize your electronics. The wrong settings may damage the ESC or motor.
Key Features:
- Efficient heat dissipation system with lower temperature rise
- Durable frameless fan
- Internal Reverse Polarity Protection Circuit
- RPM speed limit function
- Easy Obtain Running Status with Real-time Data Recording Function
- Multiple Programmable Items
- Capacitor Thermal Protection
- Super Internal BEC
- Excellent dustproof performance
- Ultra-soft 11AWG silicone wire
- Customized solder tabs, easy to solder
Technical Specifications:
- ESC:
- Scale: 1/8th
- Waterproof: No
- Continuous/Peak ESC Current: 200A/1080A
- Input Voltage: 2-6S Lipo
- BEC Output: 6-8.4V Adjustable,
- Continuous/Peak BEC Current: 6A/15A(Switch-mode)
- ESC Programing: SET Button on ESC/LCD Program Box/OTA Programmer
- Firmware Upgrade: Supported
- Size: 56.1mmx42.1mmx38.5mm
- Weight: 122g(w/wires)
- Applications: SL BL Motors/SD BL Motors
- Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
- KV Rating/T Count: 4S LiPo? 4268/4274?3000KV - 6S LiPo?4274?2400KV
- Fan:
- Size: 30x30x10mm
- Voltage Range: 5-8.4V
